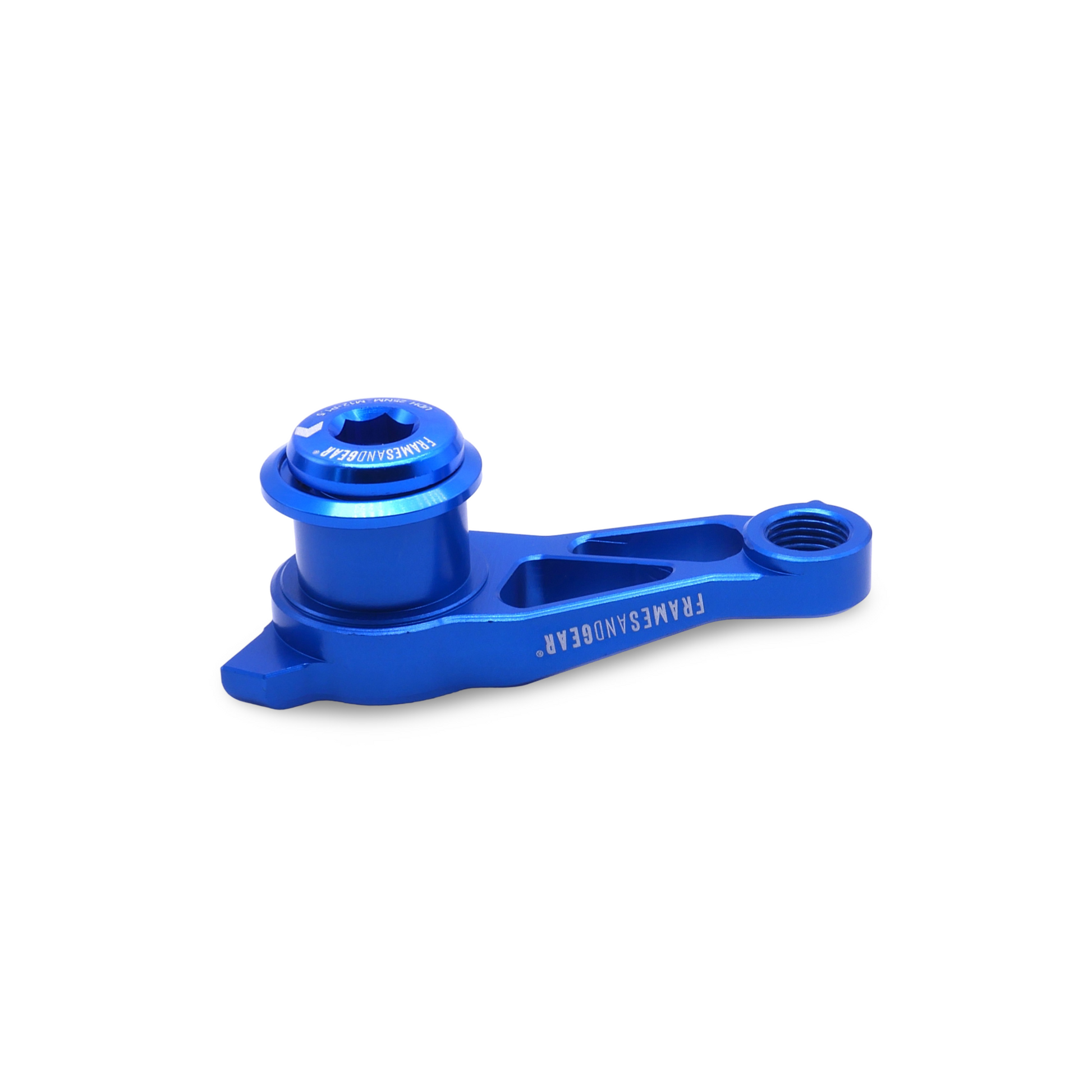

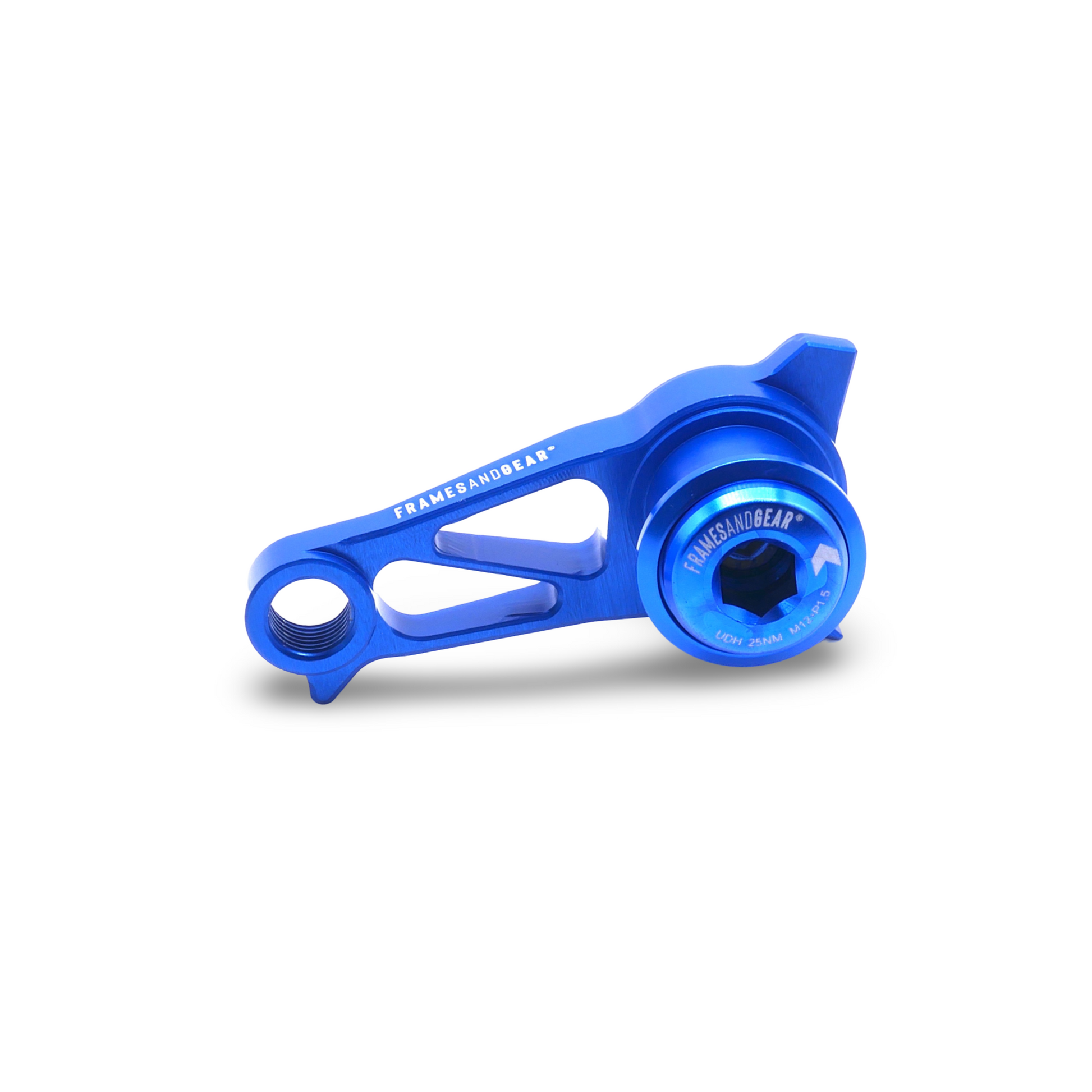

Framesandgear Direct Mount Derailleur Hanger for Pinarello Dogma GR (UDH) (Shimano) P1.0 Blue

The Framesandgear Direct Mount Derailleur Hanger for Pinarello Dogma GR (UDH) (Shimano shifting), Blue, provides a direct-mount setup for the UDH interface on the Pinarello Dogma GR frame. This mount allows for precise gear changes, stable alignment, and a clean setup that matches the M12 x P1.0 thru axle standard on the fifth generation Pinarello Dogma GR.

What you get

• 1x UDH Direct Mount Derailleur Hanger for Pinarello Dogma GR (UDH) (Shimano)

When to use it

• Use it when your current hanger is bent, worn, or damaged, or simply if you are seeking an upgrade from the traditional B-Link to a direct mount for enhanced shifting, lower weight, and the option to colour-customise
• Confirm your frame is Pinarello Dogma GR (UDH) with M12 x P1.0 thru axle thread pitch

Key specs

• Frame fit: Pinarello Dogma GR
• Axle interface: M12 x P1.0 thru axle thread pitch
• System: UDH (Universal Derailleur Hanger)
• Shifting: Shimano only
• Material: CNC-machined 7075 aluminium alloy
• Finish: Blue

Compatible Shimano derailleurs

• R9250/ R9200/ R9100
• R8150/ R8100/ R8000
• R7100/ R7000
• RX820/ RX817/ RX815/ RX812/ RX810/ RX400

UDH system notes

• This hanger follows the UDH standard used on Pinarello Dogma GR
• It fits frames that use the UDH interface and M12 x P1.0 axle standard
• However, always confirm thread pitch and frame model before ordering

Install notes

• Remove the rear wheel and derailleur before replacing the hanger
• Then clean the dropout and contact surfaces
• Next, seat the hanger fully in the UDH interface
• Tighten to the frame manufacturer’s torque specs and re-check indexing

Why UDH?

The UDH standard allows wide frame compatibility and easier replacement. It allows slight rotation during impact, which helps protect the derailleur and the frame. As a result, you reduce the risk of frame damage and keep shifting consistently.

Shipping and trust

• We include free worldwide shipping with purchase
• We ship in secure, tracked packaging
• Contact us if you want a quick fit check before ordering

Framesandgear Direct Mount Derailleur Hanger for Pinarello Dogma GR (UDH) (Shimano) Blue suits riders who want exact UDH fit, Shimano-only compatibility, and stable alignment. So you keep your Pinarello Dogma GR (UDH) shifting clean, precise, and ready for every ride.
