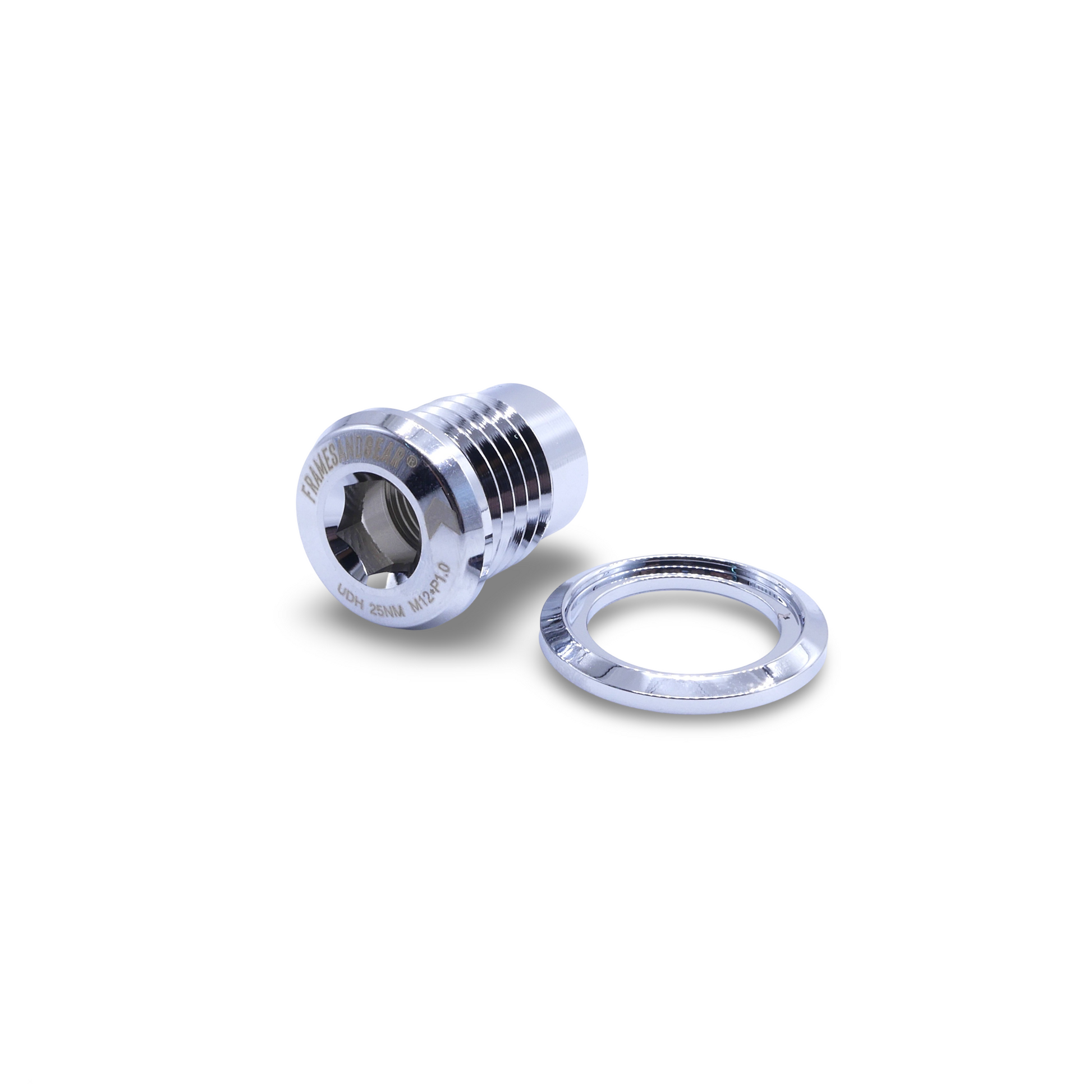

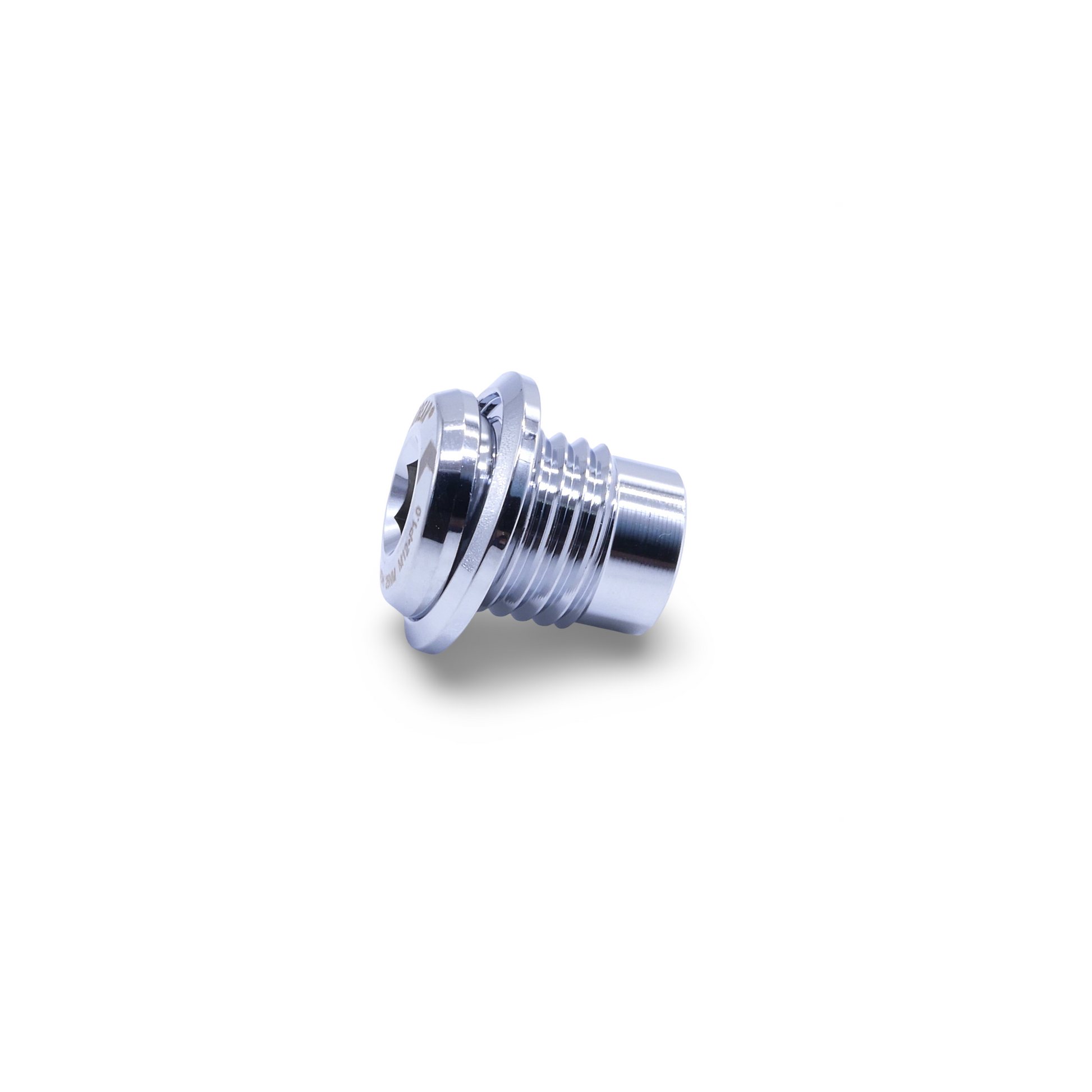

Framesandgear Spare Bolt for UDH Mounts (SRAM and Shimano) P1.0 Chrome

The UDH spare bolt P1.0 Chrome replaces a worn side bolt on Framesandgear UDH mounts for SRAM and Shimano. Ideal to restore a tight fit, or to refresh the look of the UDH area.

What it solves

• You replace a worn or damaged side bolt.
• You change the bolt color on an existing UDH setup, for customization.

Fit check (do this first)

• Thread pitch: M12 × P1.0.
• Read the text on your thru axle and confirm P1.0 pitch.
• If you see a different pitch, do not use this bolt, but order our P1.5 or P1.75 instead.

System compatibility

• Use it on frames that use the UDH (Universal Derailleur Hanger) system.
• Examples include Trek Madone Gen 8, Colnago Y1RS, Colnago G4X, and many gravel frames.
• It works with Shimano or SRAM shifting when you run Framesandgear UDH mounts.

Part specs

• Material: 7075 aluminum.
• Finish: Chrome.
• Weight: 6.0 g.

Install notes

• Remove the old bolt and clean the threads.
• Then add the new bolt by hand to protect the threads.
• Tighten to the torque spec from your frame or mount guide.

Shipping & Support:

• Framesandgear ships worldwide with tracked delivery. Each component is supplied with the required mounting hardware where applicable, making installation straightforward. Technical support is available to confirm compatibility, with replies typically within one business day.

Use the Framesandgear Spare Bolt for UDH Mounts (SRAM and Shimano) P1.0 when you want a direct, exact-match replacement.
